Available nowSL-2026-0019

Baker Hughes Two-Shaft Gas Turbine Frame 5/2C - 28.3 MW

Offer SL-2026-0019 · Scotland · Used · Available now

Review the technical fit and available information first. Commercial terms are available when the opportunity is relevant to your requirement.

Used Baker Hughes two-shaft gas turbine, Frame 5/2C, nominal output 28.3 MW, serial number 226238. The unit is equipped with a Dry Low NOx combustion system and Extender III kit.

ManufacturerBaker Hughes

Model / TypeFrame 5/2C - Two-Shaft Gas Turbine

ConditionUsed

LocationScotland · Aberdeen

Nominal output28.3 MW

ConfigurationTwo-shaft Frame 5/2C gas turbine

Request Price →Ask a Technical Question →

Technical fit first. Pricing and commercial terms for Offer SL-2026-0019 are supplied on qualified request.

Key Technical Information

Review the main specifications, condition, location, availability and supporting details for this offer.

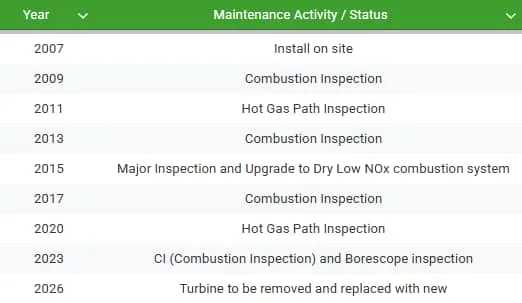

The latest supplied HMI image dated 29 July 2026 shows the turbine operating at 24.3 MW and records 76,407.4 total fired hours. An earlier HMI image dated 11 March 2026 shows 24.3 MW and 75,206.8 total fired hours, while the source proposal states 75,206 hours. Maintenance history supplied with the offer records installation in 2007; combustion inspections in 2009, 2013 and 2017; hot-gas-path inspections in 2011 and 2020; a major inspection plus upgrade to Dry Low NOx combustion in 2015; and combustion plus borescope inspection in 2023. The maintenance schedule notes turbine removal and replacement with new in 2026.

Application: Industrial gas-turbine power generation / mechanical-drive or power-generation applications subject to final configuration verification

Technical specifications

Manufacturer	Baker Hughes
Turbine type	Frame 5/2C two-shaft
Nominal output	28.3 MW
Serial number	226238
Condition	Used
Combustion system	Dry Low NOx installed
Upgrade kit	Extender III installed
Latest total fired time	76,407.4 hours; 29-Jul-2026 HMI
Earlier total fired time	75,206.8 hours; 11-Mar-2026 HMI
Displayed operating power	24.3 MW
Installation on site	2007 maintenance history
Major inspection / DLN upgrade	2015 maintenance history
Last HGP inspection	2020 maintenance history
Last CI + borescope inspection	2023 maintenance history

Technical preview · copying/printing is discouraged. Screenshot prevention cannot be guaranteed on the open web.

Included equipment / scope

Baker Hughes Frame 5/2C two-shaft gas turbine, serial no. 226238, with installed Dry Low NOx combustion system and Extender III kit. Final included auxiliaries, controls, generator/load equipment, loose parts, preservation scope and shipping scope to be confirmed.
