Available nowSL-2026-0014

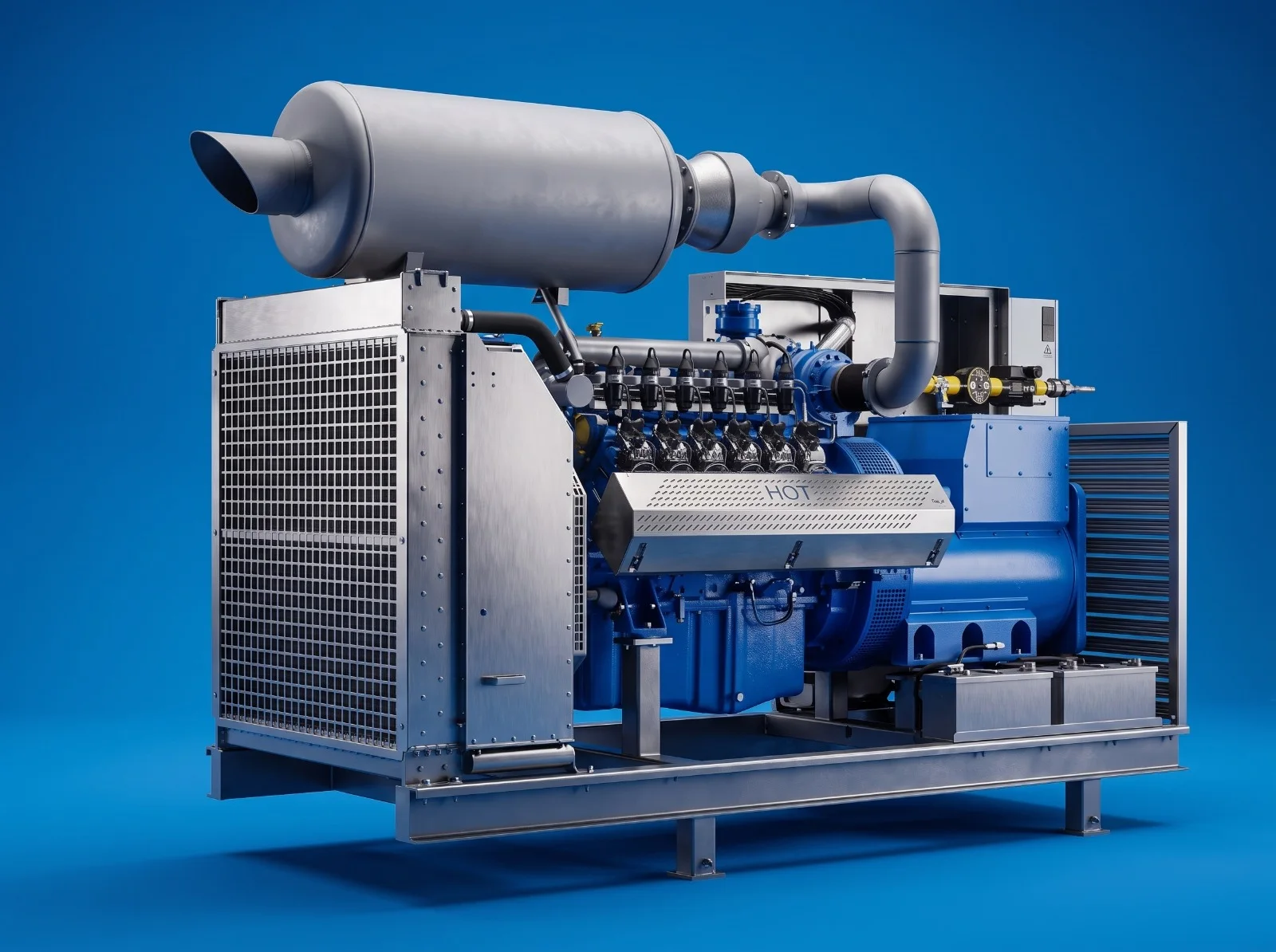

R Schmitt Enertec ENERGY-LINE M12 G500 50 Hz Natural Gas Generator Set

Offer SL-2026-0014 · Germany · New · Available now

Review the technical fit and available information first. Commercial terms are available when the opportunity is relevant to your requirement.

Compact 50 Hz natural-gas generator set with 500 kW ESP, 450 kW PRP and 400 kW COP ratings. The engine, alternator, control system and load cabinet are mounted on a common base frame. The electrical system provides automatic and manual protection/control functions with a 10-inch touch panel and Ethernet connectivity for remote monitoring and maintenance.

ManufacturerR Schmitt Enertec

Model / TypeENERGY-LINE M12 G500

ConditionNew

LocationGermany

Electrical ratings500 / 450 / 400 kW ESP / PRP / COP

Electrical efficiency41.0 % at ESP

Request Price →Ask a Technical Question →

Technical fit first. Pricing and commercial terms for Offer SL-2026-0014 are supplied on qualified request.

Key Technical Information

Review the main specifications, condition, location, availability and supporting details for this offer.

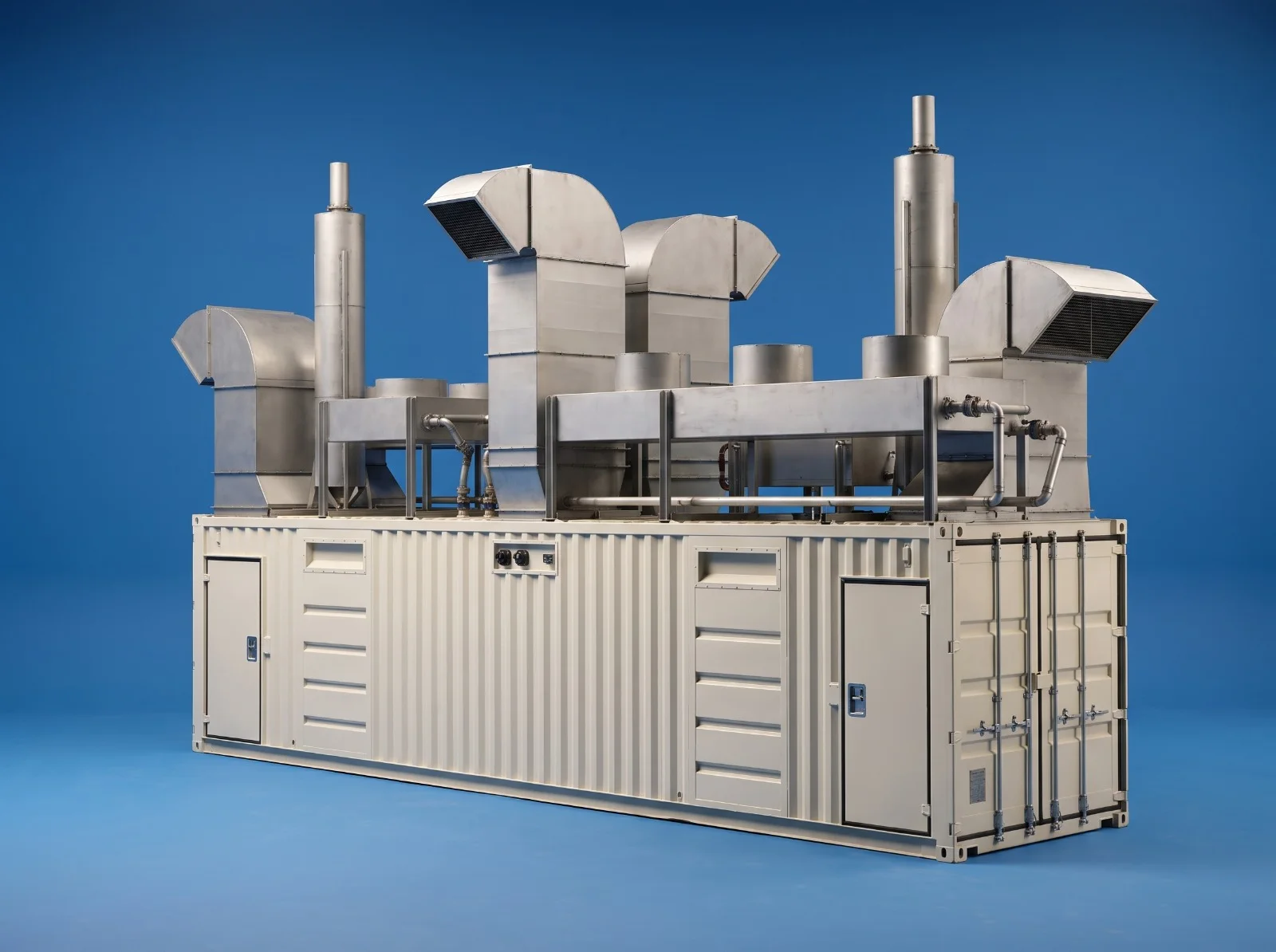

The 50 Hz version uses the R Schmitt Enertec M12-GTED41 12-cylinder gas engine and a Linz PRO35M E alternator at 400 V / 50 Hz and 1,500 rpm. Optional configurations include a weather enclosure, climate control for the control cabinet, exhaust silencer and catalyst. The supplied product material also describes a transportable 40-ft flat-rack configuration as a separate deployment option; inclusion in the offered commercial scope requires confirmation.

Application: Stand-alone natural-gas power generation; automatic emergency power operation available as an option.

Technical specifications

Fuel type	Natural Gas
Lower heating value (LHV)	9.8 kWh/Nm³
Gas flow pressure	2.2 - 5.0 kPa
ESP electrical power	500 kW
PRP electrical power	450 kW
COP electrical power	400 kW
Fuel consumption at ESP (LHV)	1,219 kW
Gas flow at ESP	120 Nm³/h
Engine displacement	22.6 litres
Alternator	Linz PRO35M E
Voltage / frequency	400 / 50 V / Hz
Alternator speed / efficiency	1,500 / 96.5 rpm / %
Exhaust temperature	≈490 °C
NOx emissions	500 mg/Nm³; 250 mg/Nm³ setup possible with changed performance data

Technical preview · copying/printing is discouraged. Screenshot prevention cannot be guaranteed on the open web.

Included equipment / scope

R Schmitt Enertec M12-GTED41 natural-gas engine; Linz PRO35M E alternator; electrical control and load cabinet; 10-inch touch-panel control interface; common base frame; standard generator-set cooling and operating components as described in the 50 Hz datasheet.

Documents available

ENERGY-LINE M12 G500 50 Hz datasheet Rev-4 (19.08.2026); 60 Hz datasheet; R Schmitt Enertec 2026 brochure; Energy Line presentation; Flat Rack Plug-&-Play product material.
