Available nowSL-2026-0013

Two Caterpillar G3616 A3 / Cooper F706 Three-Stage Gas Compressor Packages - GPS 564

Offer SL-2026-0013 · USA · Used · Available now

Review the technical fit and available information first. Commercial terms are available when the opportunity is relevant to your requirement.

Two three-stage gas-compression packages offered for sale. The supplied PowerFlow reports identify a Caterpillar G3616 A3 driver rated 4,735 HP at 1,000 rpm driving a Cooper high-speed F706 reciprocating compressor frame. Across the four supplied performance cases, modeled unit flow ranges from 12.91 to 45.77 MMscfd. The skids are located in West Texas; the zero-hour engines are preserved in a Houston shop and stated ready to ship.

ManufacturerCaterpillar / Cooper / Universal Compression

Model / TypeSeller identification: 3616TA Gemini three-stage package; Caterpillar G3616 A3 driver / Cooper F706 compressor frame

ConditionUsed

LocationUSA · West Texas (skids) / Houston, TX (zero-hour engines)

Quantity2 complete three-stage compressor packages

DriverCaterpillar G3616 A3 4,735 HP at 1,000 rpm

Request Price →Ask a Technical Question →

Technical fit first. Pricing and commercial terms for Offer SL-2026-0013 are supplied on qualified request.

Key Technical Information

Review the main specifications, condition, location, availability and supporting details for this offer.

The supplied performance reports are calculation cases for GPS 564 and are not a mechanical condition certificate. They use a site basis of 2,500 ft elevation, 105 F ambient temperature, 10% driver derate and AGA8 gas method. Performance varies by suction/discharge condition: 12.91 MMscfd at 50/1,250 psig, 16.29 MMscfd at 65/1,250 psig, 35.98 MMscfd at 150/1,100 psig and 45.77 MMscfd at 330/1,100 psig. Final sale should confirm serial numbers, current skid condition, engine identity/preservation records and package completeness.

Application: Three-stage natural-gas compression / injection service. Supplied performance cases cover inlet pressures from 50 to 330 psig and discharge pressures from 1,100 to 1,250 psig.

Technical specifications

Driver manufacturer	Caterpillar
Driver model	G3616 A3
Driver rated power	4,735 HP
Driver rated speed	1,000 rpm
Available driver power	4,261.5 HP at stated 10% derate
Compressor frame	High Speed F706 Cooper
Compressor rated power	7,200 HP
Compressor rated speed	1,000 rpm
Stroke	7.000 in
Rod diameter	2.500 in
Max rod load - compression	60,000 lbf
Max rod load - tension	50,000 lbf
Cylinder bores - stages 1 / 2 / 3	14.5 / 8.5 / 5.5 in
Performance site basis	2,500 ft / 105 F elevation / ambient temperature

Technical preview · copying/printing is discouraged. Screenshot prevention cannot be guaranteed on the open web.

Included equipment / scope

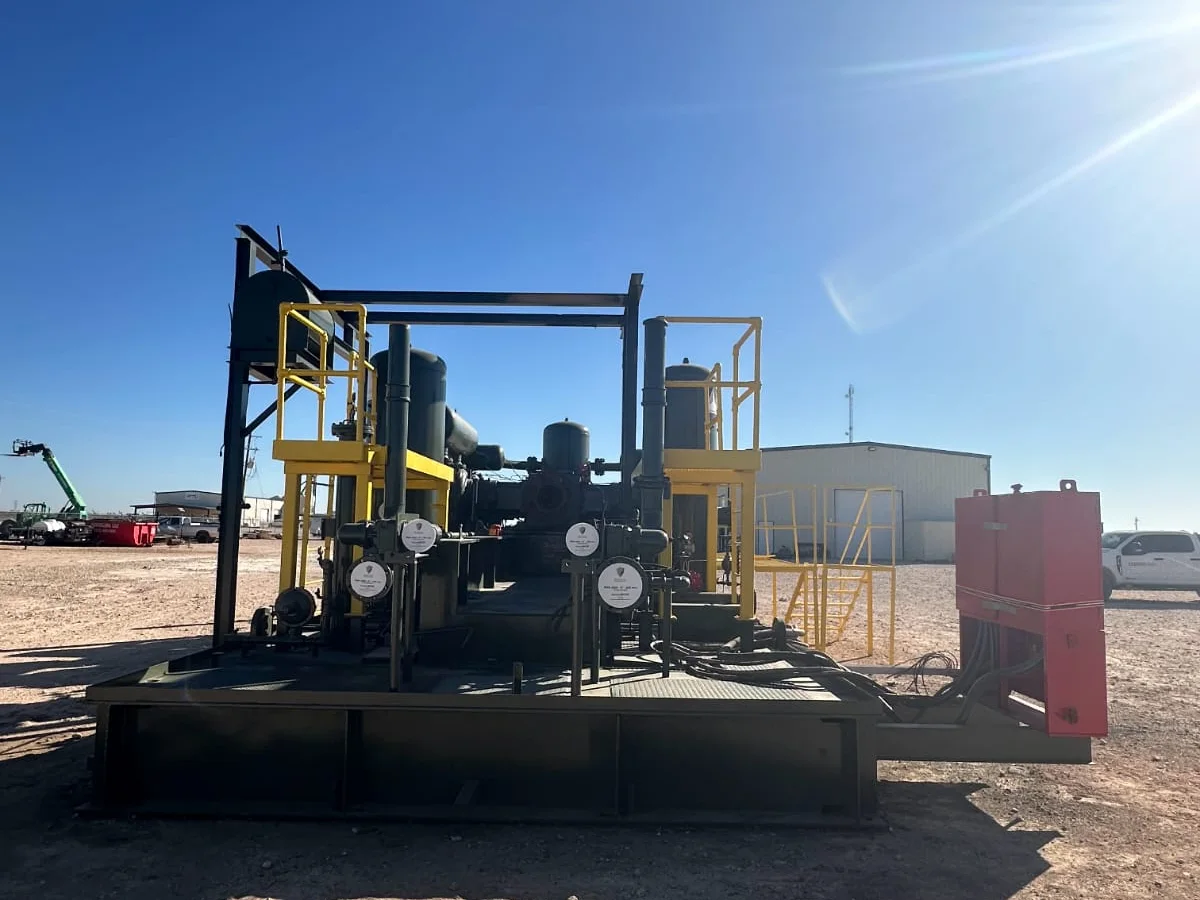

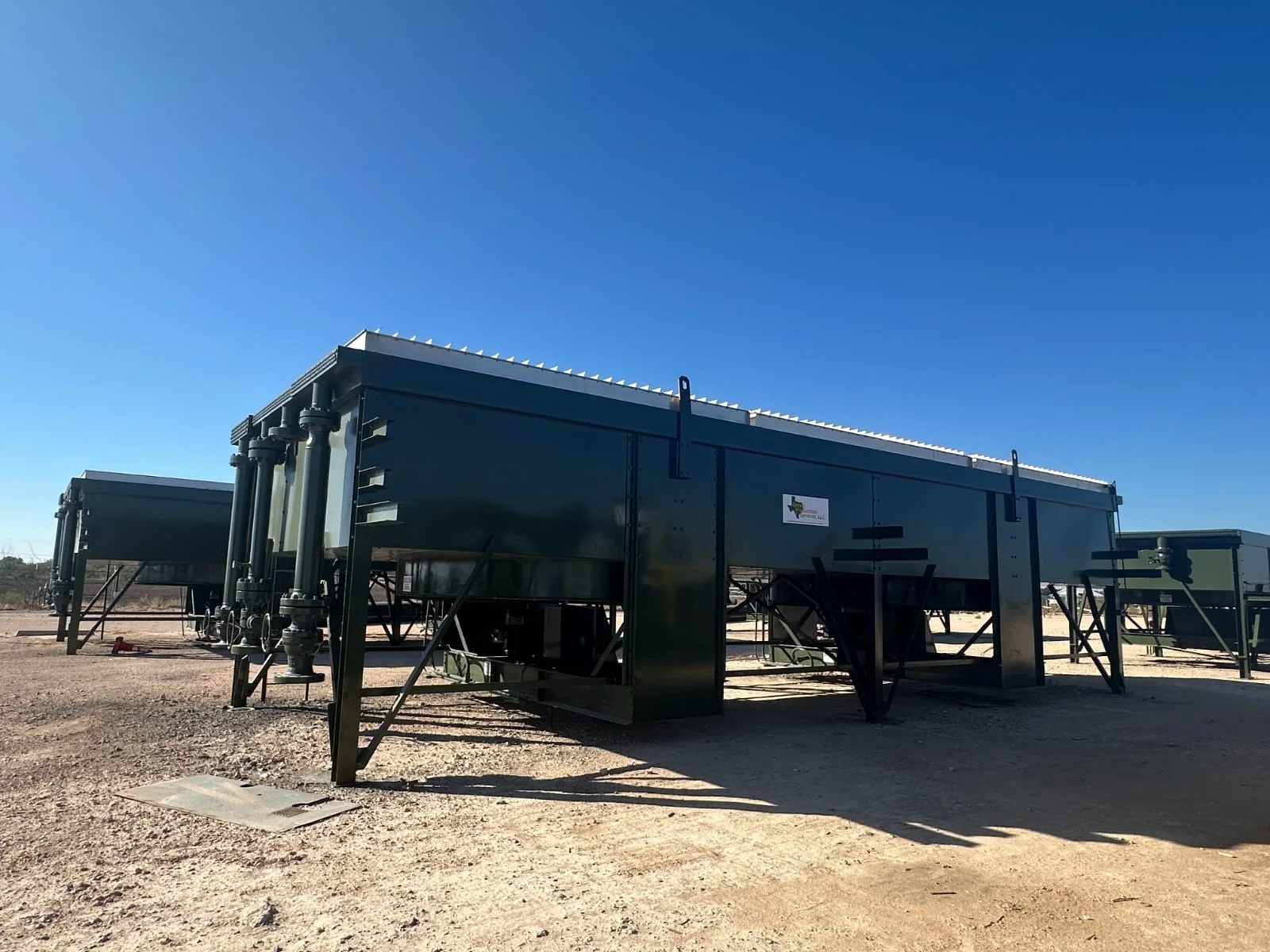

Two compressor skids with Caterpillar G3616 A3 engines (zero-hour engines stored separately in Houston), Cooper F706 compressor frames, three-stage cylinder arrangement, suction/discharge scrubbers and bottles, cooler assemblies, fuel-gas filtration/strainer components, skid/base structure, access platforms and associated package piping as shown in the supplied drawings and photographs.
