Key Technical Information
Review the main specifications, condition, location, availability and supporting details for this offer.

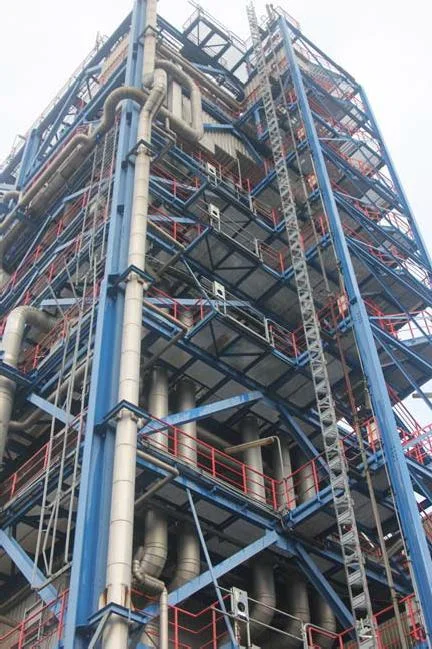

A Standardkessel natural-circulation, dual-pressure heat recovery steam generator with supplementary firing produces 200 t/h of high-pressure steam at 525°C and 141 bar abs; medium-pressure steam is generated at 200°C and 10 bar abs. The 2008/2009 work included major gas-turbine, generator and steam-turbine overhaul plus HRSG testing and inspections. Following final commercial operation, the plant was shut down in a hot condition and preservation measures were initiated.
Application: Electricity generation and process-steam supply
Technical specifications
| Plant configuration | Multi-shaft Gas turbine and steam turbine each with own generator |
|---|---|
| Gas turbine manufacturer / model | GE-Thomassen Frame 6 |
| Gas turbine fuel | Natural gas Converted in 2008/2009 |
| Low-NOx burners | 10 pcs |
| Gas-turbine exhaust temperature | Approx. 500 °C |
| HRSG manufacturer | Standardkessel GmbH |
| HRSG design | Natural circulation / dual pressure Supplementary firing |
| High-pressure steam output | 200 t/h |
| High-pressure steam temperature | 525 °C |
| High-pressure steam pressure | 141 bar abs |
| Medium-pressure steam temperature | 200 °C |
| Medium-pressure steam pressure | 10 bar abs |
| Supplementary firing equipment | Burners and forced-draught fan removed in 2008/2009 Can be reinstalled |
| Steam extraction pressure levels | 36 / 16 / 6 bar abs |
Technical preview · copying/printing is discouraged. Screenshot prevention cannot be guaranteed on the open web.
Included equipment / scope
GE-Thomassen Frame 6 gas turbine and generator; ABB steam turbine and generator; Standardkessel HRSG; transformers; condenser; pump house and pumps; auxiliary boiler; cooling-water equipment; demineralised-water treatment plant; tanks and vessels; piping and valves; bypass system; stack; cranes; auxiliary and control equipment.
Documents available
Technical expose; overhaul and inspection documentation; photo documentation
